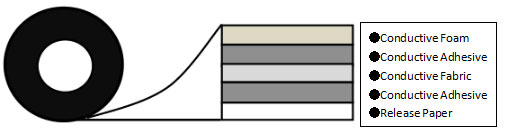

Construction
Key Features
Low contact resistance and high shielding effectiveness.
Good resilient and low compression set.
Good reliable through Accelerated Life Test(ALT).
Good reliable adhesion power to make reliable sticking.
Application Ideas
ESD grounding for electronic equipments.
Fill the EMI gap for electronic equipments.
Specification
| Item No. | Thickness（mm） | Color | Surface Resistance (Ω/sq.in) | Vertical resistivity (Ω/sq.in) | 180° Peel Adhesion (gf/25mm) | Dimension |
| E2403 | 0.03 | Silver gray | ≤0.5 | ≤0.05 | 600 | Any width x50M |
| E2405 | 0.05 | Silver gray | ≤0.5 | ≤0.05 | 800 | |
| E2408 | 0.08 | Silver gray | ≤0.5 | ≤0.05 | 800 | |
| E2410 | 0.1 | Silver gray | ≤0.5 | ≤0.05 | 1000 | |
| E2415 | 0.15 | Silver gray | ≤0.5 | ≤0.05 | 1000 | |
| E2420 | 0.2 | Silver gray | ≤0.5 | ≤0.05 | 1200 | |
| E2425 | 0.25 | Silver gray | ≤0.5 | ≤0.5 | 1200 | |
| E2430 | 0.3 | Silver gray | ≤0.5 | ≤0.5 | 1200 | |
| E2405HT | 0.05 | Silver gray | ≤0.5 | ≤0.5 | 1000 |
